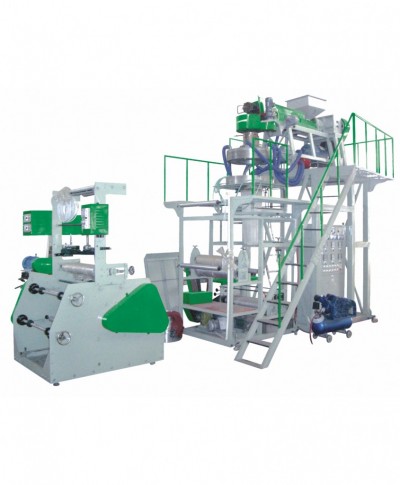

MD-PP Film blowing machine

MD-PP Film blowing machine

Main Technical parameters:

Model MD/PP-45 MD/PP-55 MD/PP-65
Suitable material PP PP PP
Film  width(mm) 100-500 150-600 200-800
Film thickness (mm) 0.03-0.11 0.03-0.11 0.03-0.11
Max. output 30 45 60
Screw diameter (mm) φ45 φ55 φ65
L/D 28:1 28:1 28:1
Barrel cooling 370w×2 370w×2 370w×3
Main motor power(Kw) 11 15 18.5
Die(mm) φ150 φ250 φ300
Fan(Kw) 1.5 1.5 2.2
Tracking roller width(mm) φ165×550 φ165×650 φ165×850
Tracking power(Kw) 5-60 5-60 5-60
Tracking speed(m/min) 0.75 0.75 0.75
Wind speed(m/min) 5-60 5-60 5-60
Wind power(N.m) 5 5 6
Machine dimension(m) 3.5×2×3.5 4.2×2.5×4 4.6×2.8×4.5
